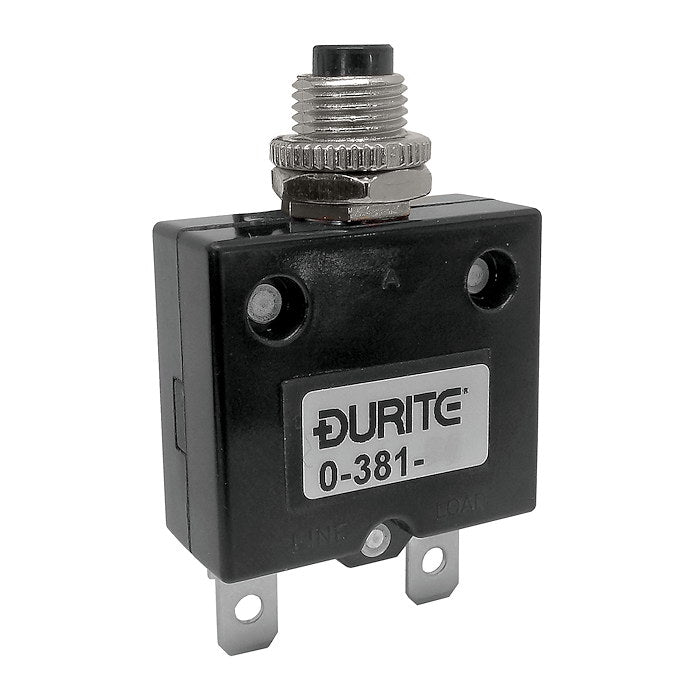

Durite 0-381-85, 12 or 24 Volts DC 35 Amps thermal circuit breakers.
- Voltage: 12V-24V DC.
- Current rating: 35A.
- A push-to-reset single-pole circuit breaker based on a snap-acting bimetallic thermal sensing element system.
- Accurately sensing overload conditions and interrupting the flow of current.
- The resettable actuator mechanism then remains disengaged until manually reset.
- 6.3mm Lucar spade terminals.
- Pack Quantity: 1 piece.
Approximate Dimensions
- Body length (including terminals and button): 60mm.
- Body width: 35mm.
- Depth: 15mm.
Associated Products
-
0-381-99 Durite Circuit Breaker Dust Cap.
